ASUS F2A85-M2

Bug

At the moment I am experiencing a problem with memory. Memtest86+ fails and in coreboot logs there is a SPD READ ERROR.

Also, dmedecode -t memory gives no output.

Rather neat board with socketted SPI flash chip for BIOS / UEFI.

My initial trials were less than successful, especially when it comes to vgabios which was rather problematic. But in the end I managed to get the board up and running with coreboot.

Tip

If you have problems, use the serial console (the motherboard has 9-pin RS232 connector).

Internal flashing and UEFI version

First of all, original UEFI version - coreboot docs state that internal flashing can be used for any version in between v5018 and v6402 (included), but ASUS F2A85-M2 has different versioning system.

So I have looked at release dates. Let's take v6402 for ASUS F2A85-M which was released 2013-07-26 according to manufacturer's web. The closest match is v0704 for ASUS F2A85-M2 which was released on the exact same date according to manufacturer's web.

Note

My motherboard has custom UEFI varian claiming to be v9904, which made things a bit more complicated. I could use internal flashing, but I could not use UEFI's ASUS EZ Flash 2 Utility to flash v0704. It was complaining about downgrade, even though according to UEFI setup the release date for running UEFI sometime in 2012 (year older than v0704).

Although custom, the running UEFI version fit in between the versions with possible internal flashing.

vgabios

I am not going to use dedicated GPU, so I want to get the integrated GPU running, for which I need vgabios.

vgabios is a bit complicated. First of all, in coreboot docs there is very little information about this ASUS F2A85-M2 so I have made few guesses. One of which was the UEFI version (I settled with v0704).

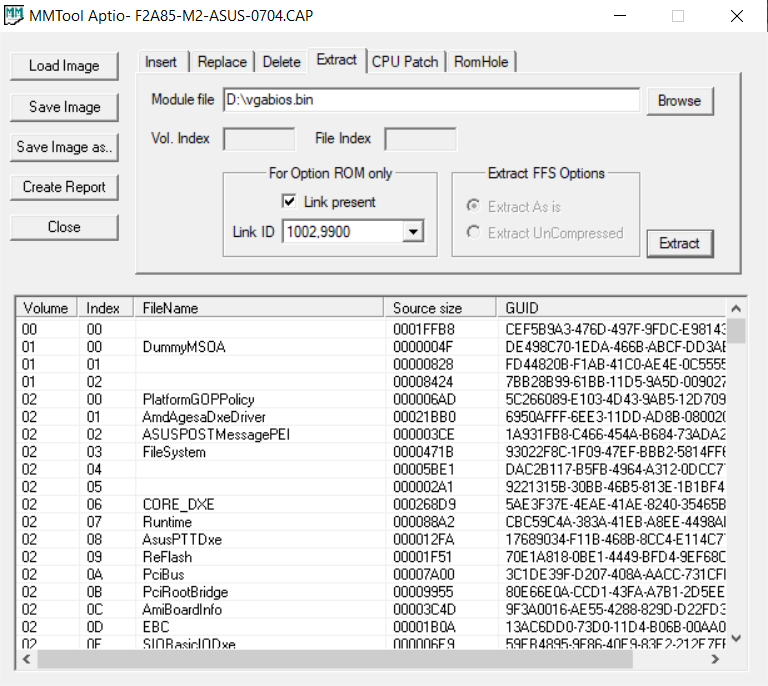

Then I used the suggested MMTool Aptio v5.0.0.7 (which seems to be some proprietary software that is not openly available). Steps are described in coreboot docs. I have used the mentioned v0704 UEFI version.

The CPU I intend to use is AMD A8-6500, which according to cpu-world.com has integrated Radeon HD 8570D which translates to VGA device PCI ID 1002,990e.

The I placed the vgabios into root directory of coreboot and named it vgabios.bin

coreboot
|-- ...
|-- vgabios.bin
|-- .config
|-- Makefile
|-- README.md
`-- ...

Configuration

My .config file can be found in sourcehut repository

In Mainboard select vendor ASUS and model F2A85-M, the rest can remain on default.

Warning

Select DDR3 memory voltage according to your used RAM modules!

Then with make menuconfig, in Devices I have enabled Add a VGA BIOS image and set VGA device PCI IDs to 1002,990e as mentioned above.

As primary payload I use SeaBIOS, with secondary payloads coreinfo, Memtest86+ and nvramcui.

Also, in System tables I have changed SMBIOS Product name from ASUS F2A85-M to ASUS F2A85-M2, but this is only cosmetic change.

And that is it. Configuration is now complete.

Flashing

Just use internal programmer. If the board does not boot, just take out the SPI flash and program it externally in breadboard or some doodad.
